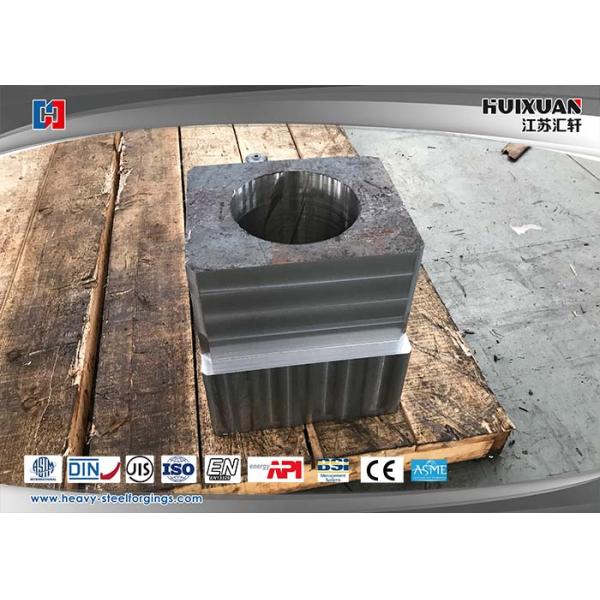

A105 LF EF VD Square Coupling Forged Steel Flanges Rough Machined

Product Categories

JIANGSU HUI XUAN NEW ENERGY EQUIPMENT CO.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: A105 LF EF VD Square Coupling Forged Steel Flanges Rough Machined
Brand: HUIXUAN
Price: 1 USD

Brand Name : HUIXUAN

Model Number : square 456

Certification : ISO9001：2008，BV,SGS, IST, UL，CTI

Place of Origin : China

MOQ : 5 piece

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 2000-5000Ton/month

Delivery Time : 20-50 days

Packaging Details : wooden case

Melting process : LF+EF+VD

Size : square 456

Material : A105

Heat treatment : QT

UT : AS 1065 level 1

Apply : Machinery parts

Contact Now

A105 LF EF VD Square Coupling Forged Steel Flanges Rough Machined

Content of Delivery

Item No	Quantity(Pcs)	Description	Heat No	Factory Product No
00116045	10	square 456	20170414-206	5793-5802

.Mechanical Properties Tests

FORGING REDUCTION STATEMEN

We hereby certificate that the forge reduction ratio as follow:

Item No	Dimension	Forging Reduction	Quantity(Pcs)
00116045	square 456	4:1	10

Metallographic Test Report

Sample Name	Forged coupling		Item No:		00116045		Factory Product No		YL5793-YL5802
-YLQuantity( Pcs)	10		Material		A105		Heat No		20170414-206
Sample Condition	OK		Heat treatment		Q+T		Test Place		Laboratory
Ambient Condition	23℃		Test Date				Sampling Location		Longitudinal
Test Standard	ASTM E45-76 Method A
Test Results
		Test Item				Technical Requirements		Test Results		Single Evaluation
Non-Metallic Inclusions		Type A		Thin		≤1.5		1.0		Qualified
				Thick		≤1.5		0.5		Qualified
		Type B		Thin		≤1.5		1.0		Qualified
				Thick		≤1.5		0.5		Qualified
		Type C		Thin		≤1.0		0.5		Qualified
				Thick		≤1.0		0		Qualified
		Type D		Thin		≤1.5		1.0		Qualified
				Thick		≤1.5		0.5		Qualified
Grain size						≥6		7		Qualified
Statement:This report only responsible for samples

Certificate of Ultrasonic Test

Parts	Customer			Date		2017-04-27
	Name of forging	Forged coupling		Testing surface		Surface
	Material of forging	A105		Surface condition		Ra 6.3 μm
Test Condition Requirement	Woke piece state	Q+T		Detection method		Straight vertical Wave
	Instrument model	HNW-6100		Working sensitivity		Φ4
	Prode model	2.5P20		Coupling way		Direct contact
	Block model	Big calm bottom CS-1		Couplant		Machine oil
	Sweep	Deepness way		Surface compensation		0db
	Standards	AS 1065		Rate as require		1:1
	Acceptance standard	Level 1		Acceptable class		≤Φ4
Test Result	Item No	Forging specifications	Qty	Defect		Result	Note
	00116045	square 456	10	None		Qualified	/







Test Result	1.The above forgings are meet the standard,The result is eligibility
Nondestructive testing Signature		Tested by:(UT-II)			Approved by:(UT-III)

A105 LF EF VD Square Coupling Forged Steel Flanges Rough Machined
